HARUKA Two Pieces Join Folder Gluer


HOME > PRODUCTS > HARUKA Two Pieces Join Folder Gluer

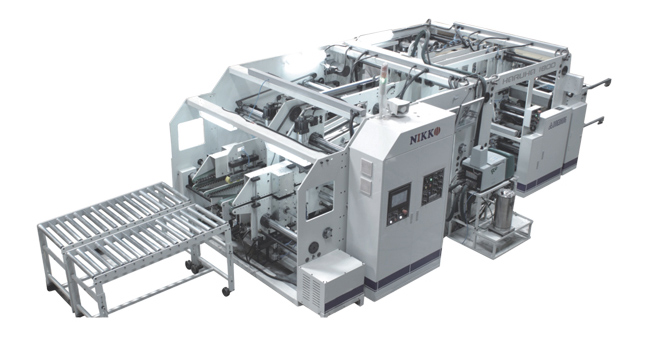

HARUKA Two Pieces Join Folder Gluer

Product ID:NET 1800/2000/2400/3000

  • Description
  • Specification Table
  • Related Product

HARUKA series was authorized to Dingshung Machinery Co., Ltd. to act for manufacture by NIKKO ENGINEERING LTD. That thanks to modular design the machine can be built to meet customer's requirement.



Model NET 1800 NET 2000 NET 2400 NET 3000
Feeding Table   Height (mm) 700 / 1100
MAX. Sheet   Size (mm) 1800 / 1600 2000 / 1600 2400 / 1600 3000 / 1600
MIN. Sheet   Size (mm) 700 / 250
The width of   glue flap. 40~50 mm
Feeding Method Auto Feeding
Sheet   Thickness (mm) SINGL /DOUBLE WALL
Adhesive HOT MELT / PVA
Machine Speed   (M/min) 30~45M/min;speed depend blank length
Dimensioin   (LWH)(mm) 6255*2920*1870 6255*3120*1870 6255*3520*1870 6255*4120*1870
Total Weight   (KG) 3800 4200 5000 6200
Power (KW) 10.2
