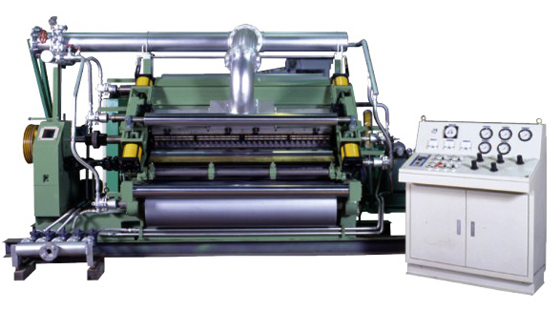

Single Facer

Product ID：SF-110/120/180

  • Description
  • Specification Table
  • Related Product

The pressure between corrugated roll and pressure roll is con1rol1ed Manually adjusted by the a pneumatic valve and gauge. Glue thickness is controlled by the glue roIler gap which is manually adjusted with a scale ruler. Motorized glue dam device is easily controlled to meet the wet size accurately and quickly.

Model SF-110 SF-120 SF-180
Max. Effective Paper Width (mm) 1450 / 1640 1450 / 1640 / 1840 1840 / 2040
Max. Machine Speed (M/min) 100 130 180
Heating Type Gas or Steam Gas or Steam Steam
Main Drive (HP) 10 20/20/25 30
Upper &  Lower corrugating roll Material/Diameter SCM440 / 253mm SNCM439 / 280mm SNCM439 / 305mm
Press Roll  Material/Diameter S45C / 292mm S45C / 292mm S45C / 320mm
Glue Application Roll Matrial/Diameter S25C / 180mm S25C / 196mm S25C / 254mm
Doctor Roll Material/Diameter S25C / 98mm S25C / 128mm S25C / 146mm
Glue Dam Type Manual Motorized Motorized
Pre-heater Roll for medium S25C / 270mm S25C / 318mm S25C / 270mm
Pre-heater Roll for Liner S25C / 270mm S25C / 350mm S25C / 350mm
Length (mm) 2320 / 2520 2720 / 2910 / 3110 3650 / 3850
Width (mm) 1200 1270 1350
Height (mm) 1500 1500 1600
Weight (kg) 4000 / 4500 5500 / 6000 / 6500 6500 / 7000
