FOLIUMASTER Water Base OPP/PET Film Laminator


HOME > PRODUCTS > FOLIUMASTER Water Base OPP/PET Film Laminator

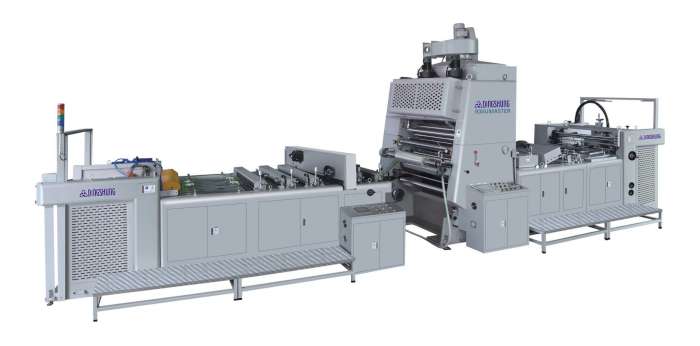

FOLIUMASTER Water Base OPP/PET Film Laminator

Product ID:FM-1050S/1050X/1050L

  • Description
  • Specification Table
  • Related Product

Foliumaster has German design Vertical Two Roller system that control different temperature of Double drying cylinder and Laminating cylinder to perfect lamination condition. Water base glue precise coating onto film through the Drying Drum and to be laminated with art sheet that direct to Separator after reach delivery Pile Stacker. It is Eco production to saving the cost to using Thermal Film Lamination and also solving most Laminating material problem.



Model FM-1050
Max. Sheet Size (W*L) (mm) 1050 x 910
Min. Sheet Size (W*L) (mm) 300/300
Range of Paper Weight (gsm) 100-600
Range Material of Film
BOPP/PET
Machine Speed 10~60M/min
Operation Speed (sheet/hr) According paper size and quality
Machine Power (A) 63.5 KW
Machine Weight (Kg) 10500 kg
Machine size (LWH) (mm) 13000x2060x3150
