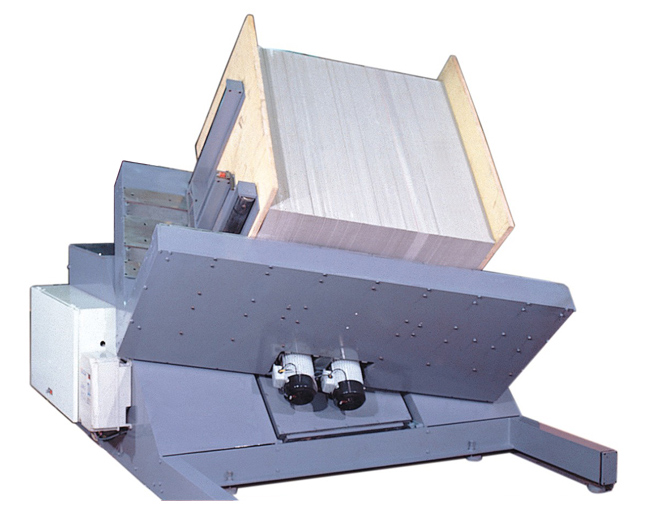

Vigor Pile Turner

Product ID：120/145/165

  • Description
  • Specification Table
  • Related Product

Vigor Pile Turner for print preparation and post-press treatment that provide high performance and short turning time; there are no long waiting times ca use d by manual re- stacking . It does not need embedding in the floor, compact working area and it is able to move anywhere by manual truck.



Model ARC-120JAL ARC-145JAL ARC-165JAL
Max. sheet size (mm) 800*1200 1100*1450 1220*1650
Pile loading   capacity (kg) 1000 2000 2300
Platform width   (mm) 1250 1500 1700
Platform depth   (mm) 900 1200 1350

Max. pile height (mm)

(included two pallets)

1350 1600 1600

Min.pile height (mm)

(included two pallets)

650 850 850
Power require   (kw) 6 17 20
Space require (L*W*H)(mm) 2530*2590*2820 3200*2955*3280 3350*3200*3280
Net Weight   (kg) 1500 2500 3000
